 Topic: [TOOL] FlashTool - X10/Mini&pro/X8/Neo/Arc/Play  (Read 10187 times)
0 Members and 1 Guest are viewing this topic.
Pages: [1]   Go Down
09-30-11 05:10 PM
  • GFX Artist
  • *
  • Male Offline

Posts: 2720
Thank You: 1711
Reputation: 50
litemint has no influence.barely matters.is working their way up.might someday be someone...is on the verge of being accepted.is a rising star!has a powerful will.is a force to reckon with.has great potential!has an aura about them.is leading the good life!is awe-inspiring!
A permission granted from the original authors to post some of the info regarding the subject:



Flashtool - created by Bin4ry, currently Androxyde leading the project as of today.

FlashTool now is something like an all in one Tool for your phone.

It can:
- Flash original Images (Android 1.6 & Android 2.1 Images)
- Root your phone (Only if the phone is on a 2.1 android version)
- Install xRecovery, Busybox, custom kernels
- Clean your Rom (remove /system/apps apps of your choice) (Be careful, unless you really know what you do, do not modify the default list. This can make your phone stuck at the SE Logo)
- Clear dalvik cache
- Optimize (install of JIT v2)
- Customize (installs apps found in the custom/apps folder of the flashtool)
- Clean uninstalled (remove any references to system apps removed in the Clean (root needed) step)
- Edit any text file on the device
- Rebrand your device

The tool can flash v1.6 firmwares, v2.1 firmwares, different basebands, dual touch drivers and other modifications. It can also be used to "un-brick" an X10 if anything goes wrong. e.g. boot loop, stuck at the Sony Ericsson logo, small screen, etc. caused by tweaking/modifying/rooting/etc.

You CANNOT brick/ruin/break the X10. It will ALWAYS go into flash mode (from off, hold the back button, connect the USB cable).

You can flash ANY firmware onto ANY X10 -- even AT&T (so stop asking if it'll work on your X10). Your phone does not have to unlocked, rooted or anything else. Flash mode overrides everything and is before any software is loaded.

(Once v2.3 Gingerbread is released in Q3, it'll flash those firmwares too. And no, I don't know when it'll be released.)

Flashing does NOT re-lock a SIM/network unlocked phone. Unlocking is ONCE and PERMANENT (and is independent of any firmware on the phone).


.:[ Downloads ]:.

Flashtool version 0.4.2.0

FlashTool version 0.3.0.0 (MD5: 4C47C82793B78213EDC7D8231FFCA604)
Warning about 0.3.0.0 version: Only X10 is fully recognized in this version.
To add other devices to be recognized, look into the devices folder of Flashtool.
Adding a folder for each new device and duplicating X10 folder content,  editing property file too will add a new device to the flashtool.
A tutorial will follow soon to be more precise about that.


FlashTool version 0.2.9.1 Beta (MD5: 4C370DDC5B6D40F96CA00D856019B19F)
FlashTool version 0.2.8 (MD5: AA74D77D55386C7DDF5D5F2C98E3BD38)

.:[ Firmwares]:.
X10
X10 Mini and Pro
X8
Arc
Neo
Play
Reply #1
09-30-11 05:10 PM
  • GFX Artist
  • *
  • Male Offline

Posts: 2720
Thank You: 1711
Reputation: 50
litemint has no influence.barely matters.is working their way up.might someday be someone...is on the verge of being accepted.is a rising star!has a powerful will.is a force to reckon with.has great potential!has an aura about them.is leading the good life!is awe-inspiring!
.:[ Tutorial ]:.

Firmware can be a .tft or .sin file.

- Extract the file Flashtool (I got FlashTool_0.2.9.1-GBready_root_xRec)


- Open the Flashtool folder, goto drivers folder, and install the Gordon's Gate USB Driver (ggsetup-2.2.0.10.exe)


.:[ .tft Firmware Flashing ]:.

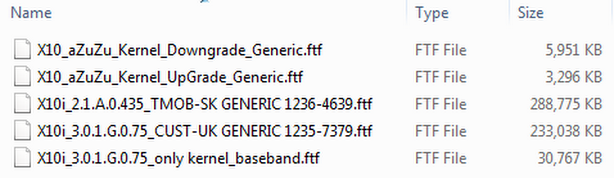

- All the firmware(.tft) should be placed in firmware folder


- Open FlashTool.exe


- Click Flash, select the firmware you would like to flash/upgrade/downgrade, check Wipe User Data, then click OK



- On Your Phone:
a. Power off your phone
b. Hold Back Button
c. Connect the USB cable to PC

- Antayin lang matapos, that's it.


Watch on Youtube
Flashing, Upgrading, Downgrading, Unbricking the Xperia X10 (FlashTool 0.2.9, 0.2.


.:[ .sin Firmware Flashing ]:.

1. Open Falshtool.exe
2. Unzip your FW version
3. Unzip Dualtouch
4. Copy your FW and Dualtouch to firmwares folder



5. (optional) Copy kernel.sin from Dualtouch foler to your FW forder and overight the existing one.

- this step will install dualtouch on flash

6. Open X10FlashTool.exe from Flashtool folder and go to Advanced > Bundle Creation



7. Click on dots



8. Choose the path to you FW and click "open"



9. Put whatever you want on (1) select all files from left, click right arrow (2) and ok (3)



10. Now wait a while and you will get your *.ftf file on firmwares folder

- This is the file you`ll use to flash your phone. Now go up to .tft Flashing Firmware Guide

.:[ Rooting ]:.

Tested applicable to X10/X8/Mini and Pro
Firmware Version Required: 2.1.1

On your phone check "USB debbuging mode" on Setting > Applications > Development then
check "Unknown Sources" on Setting > Applications

Open Flashtool then Plug your USB cable to the PC, Flashtool will detect your device, Root button will be enabled, click it to root your device, it will gone tru this window.


magrerestart ang phone mo, then may mapapansin kang ganitong icon,

SuperUser, hayan, rooted na phone mo.

Kung Firmware mo ay Gingerbread(2.3.3), heto ang steps for
X10


or using the
SuperOneClick




.:[ Installing xRecovery ]:.



xRecovery - a normal android recovery that you can access when your phone is on sony ericsson during boot press back button few times to run it.

For what is for?

It is for creating whole system backups and installing custom roms and sometimes update.zips or custom zips.

Features:

    ADB root shell
    Reboot
    Install update.zip from SD Card
    Factory reset (full wipe)
    Wipe cache partition
    Install custom zip
    Backup and Restore
    Partition tools
        Mount/unmount partitions
        Format partitions
        Mount as USB Storage
    Advanced options
        Wipe Dalvik cache
        Wipe battery stats
        Fix permissions for apps (FC fix)


On your phone check "USB debbuging mode" on Setting > Applications > Development then
check "Unknown Sources" on Setting > Applications

Open Flashtool then Plug your USB cable to the PC, Flashtool will detect your device, Ask Root Permissionbutton will be enabled, click it to ask permission(allow) on your device, on your phone the SuperUser will pop out, tap Allow.

Now xRecovery Button will be enabled on FlashTool, click xRecovery, antayin lang hanggang successfully installed ang xRecovery.

Pano Gamitin: During booting process ng phone mo, doon sa Sony Ericsson na logo, press Back ng ilang beses(kahit isang beses lang).



.:[ APK Installer ]:.

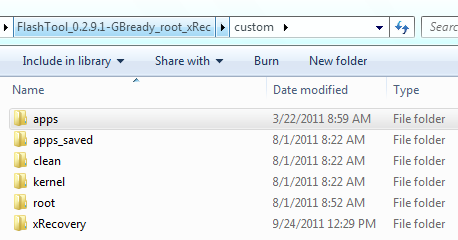

Ilagay lahat ng .apk file sa Custom > apps folder


On FlashTool just click APK Installer, at iinstall lahat ng .apk na andun sa app folder papunta ng cp mo.

.:[ FAQ ]:.
Q:


.:[ Credits ]:.
Bin4ry
Androxyde
Ricardo Rendeiro
BluechipJ
Reply #2
09-30-11 07:56 PM
  • Full Member
  • ***
  • Male Offline

Posts: 1614
Thank You: 347
Reputation: 16
aeaeae has no influence.barely matters.is working their way up.might someday be someone...is on the verge of being accepted.is a rising star!has a powerful will.is a force to reckon with.has great potential!has an aura about them.is leading the good life!is awe-inspiring!
Yun na! Flashtool for SE users!

Maraming salamat dito sir Litemint.
Reply #3
10-01-11 08:53 PM
  • Banned
  • Full Member
  • ***
  • Male Offline

Posts: 2050
Thank You: 430
Reputation: 5
komiks0916 has no influence.barely matters.is working their way up.might someday be someone...is on the verge of being accepted.is a rising star!has a powerful will.is a force to reckon with.has great potential!has an aura about them.is leading the good life!is awe-inspiring!
Reply #4
10-03-11 04:12 AM
  • GFX Artist
  • *
  • Male Offline

Posts: 2720
Thank You: 1711
Reputation: 50
litemint has no influence.barely matters.is working their way up.might someday be someone...is on the verge of being accepted.is a rising star!has a powerful will.is a force to reckon with.has great potential!has an aura about them.is leading the good life!is awe-inspiring!
@ae & comics, no problem po.
Reply #5
10-30-11 09:13 PM
  • Full Member
  • ***
  • Male Offline

Posts: 2710
Thank You: 477
Reputation: 3
zero23 has no influence.barely matters.is working their way up.might someday be someone...is on the verge of being accepted.is a rising star!has a powerful will.is a force to reckon with.has great potential!has an aura about them.is leading the good life!is awe-inspiring!
X8 Shakira E15i_2.1.1.A.0.6_generic.ftf sir lite pa mirror naman po nito di ko kasi ma download ehh
Reply #6
10-30-11 10:31 PM
  • Full Member
  • ***
  • Male Offline

Posts: 941
Thank You: 108
Reputation: 1
MadM0use has no influence.barely matters.is working their way up.might someday be someone...is on the verge of being accepted.is a rising star!has a powerful will.is a force to reckon with.has great potential!has an aura about them.is leading the good life!is awe-inspiring!
Nice tut0rial sir. Very informative. Easy to follow kesa ibang tut.

sir tcp member ka? Parang nakita ko na name m0 dun. Anyway, pr0ud tcp member din ak0.
Reply #7
10-02-13 11:20 PM
  • GFX Artist
  • *
  • Male Offline

Posts: 2720
Thank You: 1711
Reputation: 50
litemint has no influence.barely matters.is working their way up.might someday be someone...is on the verge of being accepted.is a rising star!has a powerful will.is a force to reckon with.has great potential!has an aura about them.is leading the good life!is awe-inspiring!
Yup,member din ako dun, di na ko active doon :-)
